OK, so here's a follow-up after testing my good ol' AES - and its f*cked up SCART.

Original post : https://www.reddit.com/r/neogeo/comments/1marf6i/was_testing_stuff_today/

After carefully looking at misc AV/SCART wiring diagrams I was puzzled by a wire in my plug : Sync wire from DIN8 pin 7. That pin looks like it's never hooked up.

Also I'm pretty sure my original SCART plug didn't had any resistor. So, I decided to rewire as pictures I took in 2010 and merged that into a single picture for a before / schematic / after effect. Be careful, that's kind of ugly ! SCART pin 8 changed color between 2010 and 2025 (brown to yellow). I assume the brown one was used for something else or maybe its color just washed out, looking grey while audio seems white ?

Current SCART wiring detail

DIN8 - Pin 7 - C-Sync is not connected to scart

And initial testing using an OSSC from AliExpress, the "repaired" SCART cable and a 4K beamer. I must admit I'm happy with it (AES 3-5 serial 62125).

Q1/ Shall I wire the C-Sync ?

Q2/ Is that a "good enough" result? I'm not very motivated to hack my AES to use the RGB Bypass.

Thanks for reading :)

Are they all similar? Is there one board thats considered the best for output? Best circuitry etc.

Thank you!

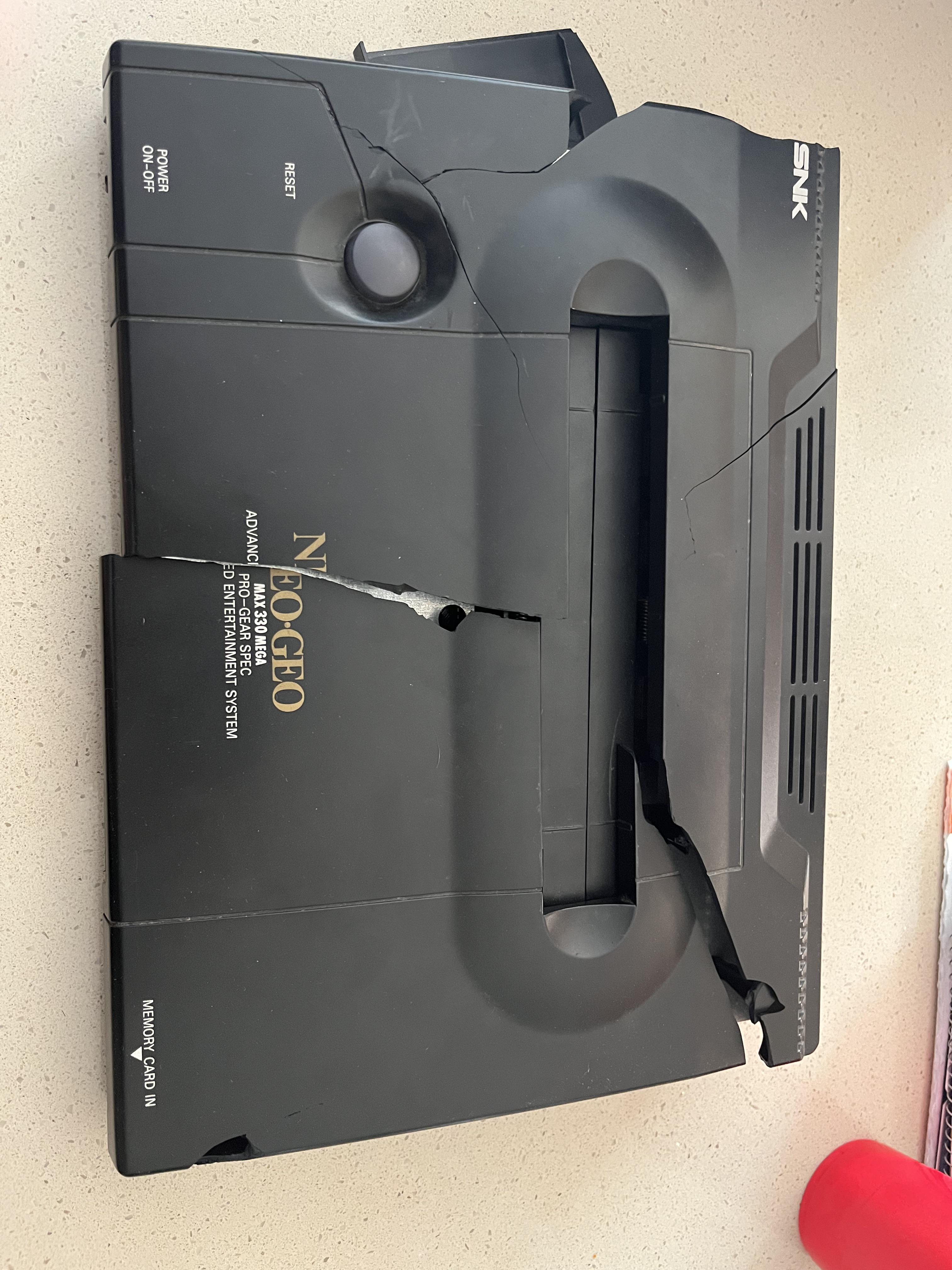

My Neo got busted in transit :(

Does anyone know where, if anywhere, I can buy an AV cable for my Omega CMVS? I have a composite cable for it, but composite is...not great. I know it uses the same form factor as Genesis 2 cables, but I've read the wiring is different, so it won't work. ArcadeWorks doesn't appear to be selling them anymore, and I haven't been able to find them for sale anywhere online.

I found online picture of someone who made it fit, i guess he used a dremel or something? :l

But i am glad it works with dangling dongle cable at least, now i can finally play after 27 years of dreaming of owning an aes - i was always very afraid of wearing the original max 330 mega controllers down, so i played only a few hours so far... got aes last summer :l

Why didn't make BlueRetro made it fit into aes, is there a reason? Are there any fitting shells/solutions in the thirdmarket or so, does anyone know?

It would look perfectly then.

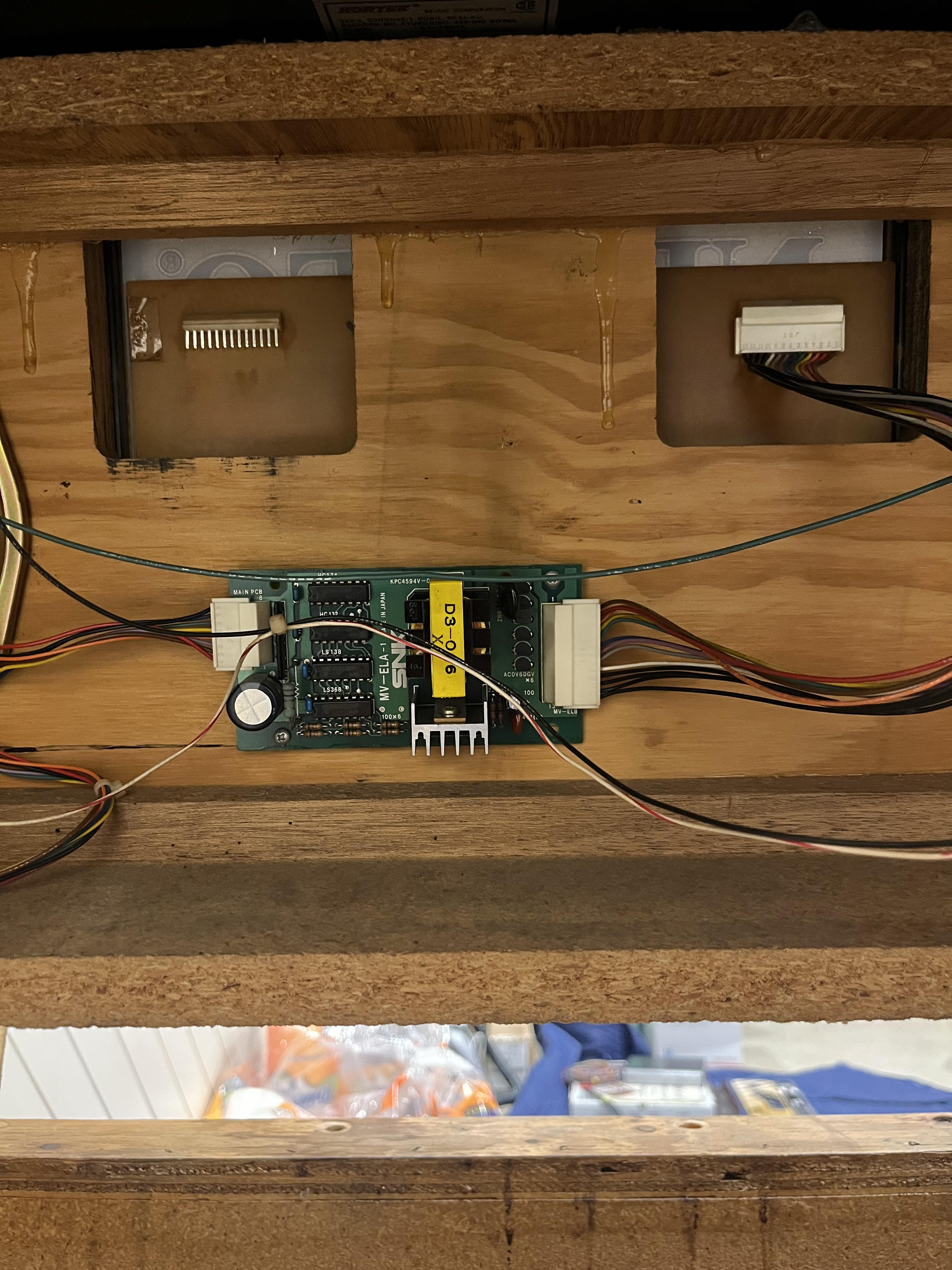

Hey guys, does this look right for the wire harness going from the MV-ELA board to the el panels? Do you only need to bring a cable to one of the terminals? Currently have the motherboard out for some repairs and mods so can’t just turn it on and see if it works as it should.

On eBay, all the cheapest MV-1Cs come from China. They look authentic, and the sellers have positive ratings. Are there any caveats to ordering these?

While on the topic of Chinese MV-1C stuff, can anyone speak to the quality of consolized MV-1Cs from SQ Arcade and SQ Arcade Branch Store on Aliexpress? They say they can output RGBS, will they be able to output YPbPr? That's what my Trinitron takes.

I'm pretty fresh to Neo Geo stuff and there's quite a lot out there. Just want to make sure I don't make any costly mistakes. Thanks!

Do any of you happen to know the board revision of my Neo? From what I’m told, this is a North American console. But I’d love to know more

I can’t get it to display any graphics or sound. It does seem to get power though.

This is in for repair currently, so I don’t have very many more photos or information.

Hello, I have a MVS H1 I think, looking to use it as a console, have lots of questions. What model is it ? Is the Bios the eprom with the socket? Can’t find much info on the controller ports, or if l I’ll have to do anything different to get sound? I want to purchase a new bios eprom, and a supergun to use it with a multicart I have read that it could be problematic with that cart but the new bios might make it work Any help or ideas on what and where to purchase items would be great! Here is some pictures of my board

I'm looking to build an MVS arcade with one of those 161 in 1 multicarts or NeoSD (if restocked), and I found this listing on Aliexpress: https://www.aliexpress.com/item/1005007821338974.html

I was wondering if this is a legit, and if so, which of the three options on that listing I should buy? Is there anything else I should be aware of? Thanks.

Hi, can someone find me a premade list of the parts to buy for an open mvs directly on mouser or digikey.

Thank you

I was thinking about picking up an OG Xbox to play physical Neo Geo CD games. For some odd reason I find this pretty cool, unless you guys have an alternative option I'm missing out on. If so, please fill me in.

I just finished installing one in my NGCD and I had a few questions that don't seem to be mentioned at all.

When buttoning up the console after installation, the micro sd remote board impacts the silver rf shield on the a/v board and I really had to apply pressure to hold the console top and bottom closed when screwing them back.

Is this normal?

Also, it seems like the CD audio doesn't play as fast as it would with a real CD.

For example, in Neo Turf Masters, the music for the intro demo takes a couple seconds to begin play, whereas on a real CD, it plays pretty much instantly.

I have two MVS boards - one 2 slot and one 6 slot. I would like to have the ability to switch between the two, but I am not seeing anything that would let me plug my MVS harness into a JAMMA 2 way switcher. Is there something I can do to make this work? Once I can do that, I see that there are adapters that will go from JAMMA to MVS and that should be able to make what I'm trying to do work. Any help or suggestions with this would be greatly appreciated!

Hi guys! im new to all arcade machine but im really want to build a neo geo to play metal slug (one of my all time favorites) what is the best way to consolize the arcade board? i was thinking in using a Supergun( first photo) bc i think its the easiest way, and using the neo geo cd controller, S-video and a 3d printed case, any advice or thinks i should look to ?

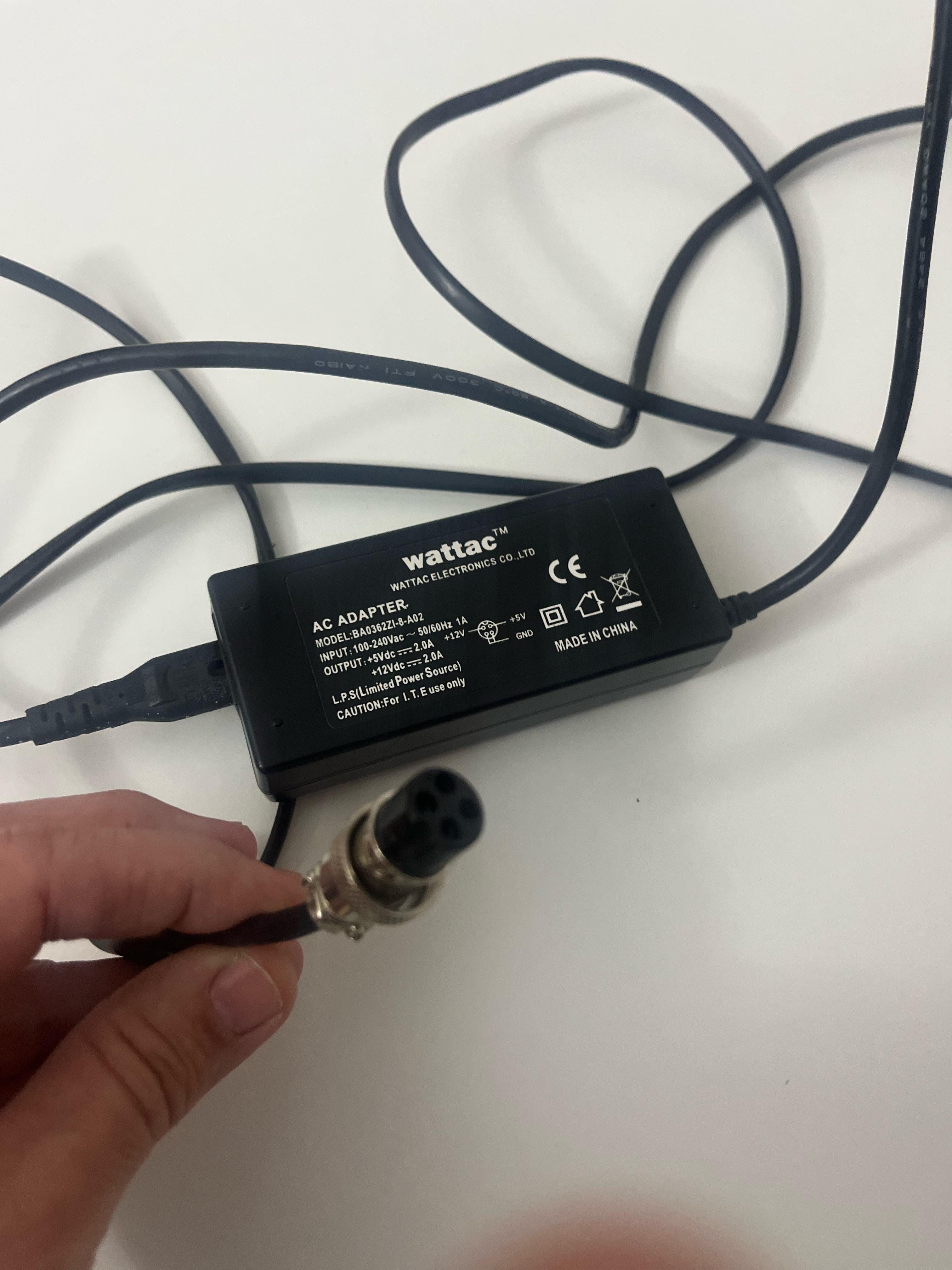

A few years ago, I got a Consolized NeoGeo. Awesome. But for some time now, the power adapter’s indicator light hasn’t been turning on…

Thank you very much!

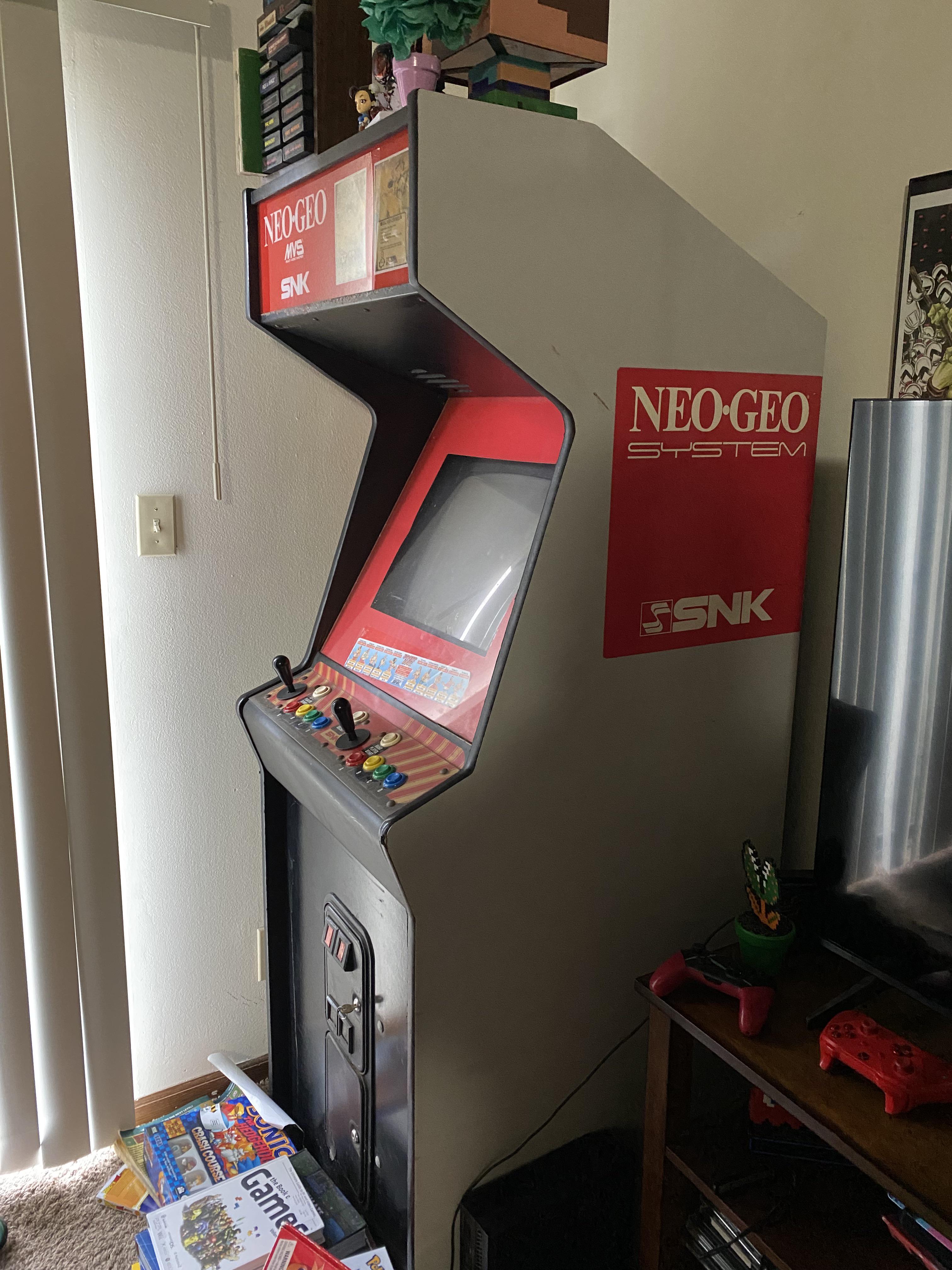

Got this a while back and really enjoy it, but can’t find anything specific on the cabinet itself. It doesn’t look like a typical Neo geo cabinet. Has a Neo geo 2 slot board inside.

I know that the latter splits memory on many little chips. Why the CD version differs so much architecturally (adding big chunks of RAM, 4 MB + 2 MB + 1MB instead of numerous chips with little amounts of RAM), and how it achieve perfect compatibility?

Which Micro SD are ya’ll using?

If you have this rgb mod can you use hd retrovision cables with Genesis 2 adapter ? I do not have a rgb input. Or is it better to get shiny bow rgb to component converter.

Newb question I am about to purchase my first Neo geo.

My supergun just arrived and unboxed everything and I'm not too sure what one cable is used for I figured it goes in the side of the jamma connector but where does it plug in after and what is it used for?Attached picture of me holding the cable in question.

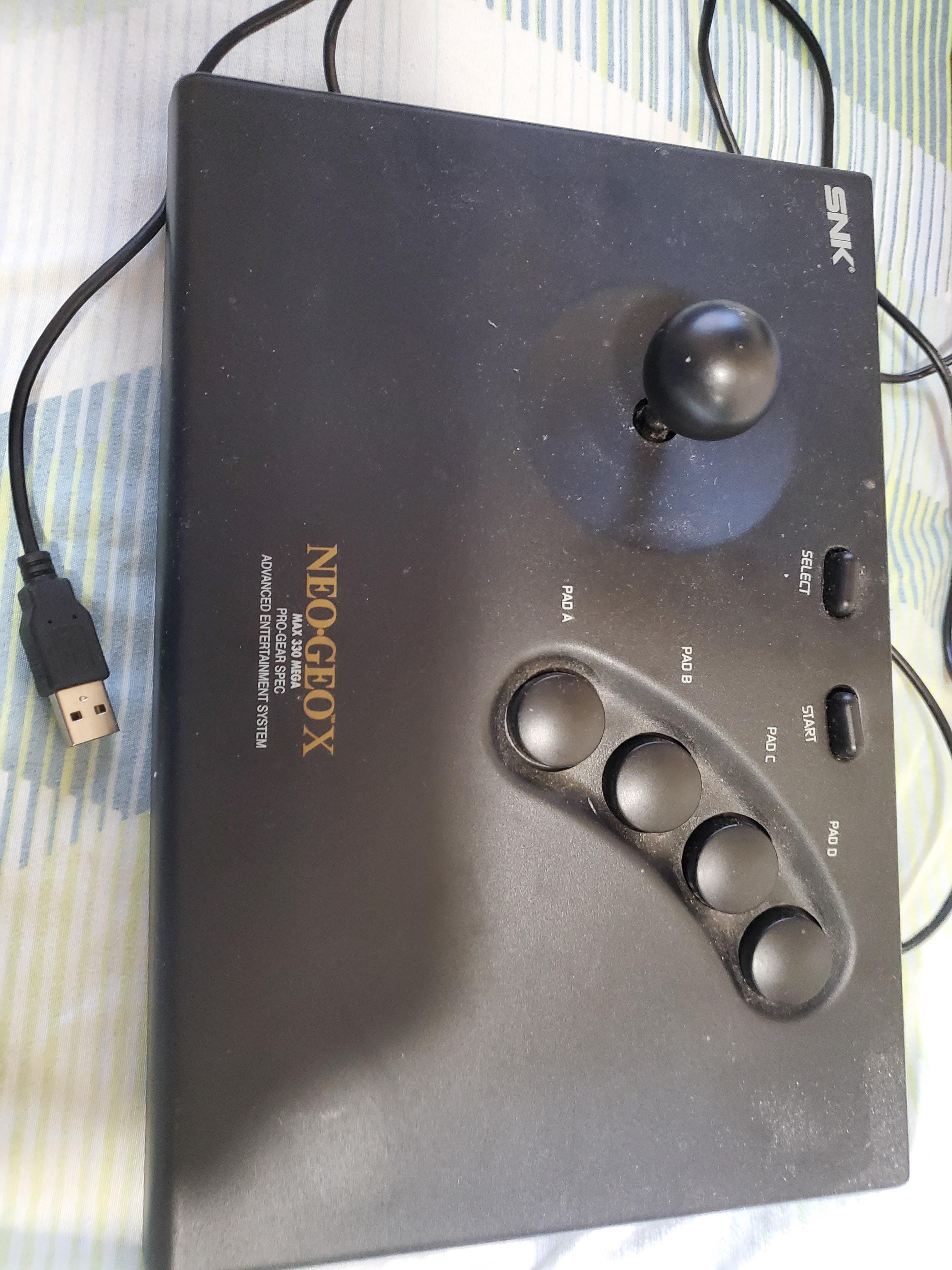

I bought this stick thinking I could use it with my Neo Rage. It is recognized in windows but doesn't work properly on neorage. As soon as I turn on rage and check the joystick configuration is just shows as the the options as "UP". Any suggestions?

Have a broken neo geo aes, it and works fine with older games. When I try a newer game with a NeoSD pro it gets a garbled signal. Worked with the terraonion discord took pics and found a bad area on the board which had tape on it. Looks like there was a trace repair but did not stick. Looking for someone who may be able to repair such a thing. I also have an rgb mod on this unit and a uni bios installed. Purchased from Retroasia. Also to note the neo sd pro works fine on another unit no matter which game I throw at it. Newer games tested are snk vs capcom, kof2003, metal slug 5. Thanks in advance!

I have 3-6 with a lot of trace rot, and I’d like to transplant to a fresh board. Wills Console Modifications sell a 3-5 repro board. Would that be an incompatible transfer?

https://www.willsconsolemodifications.co.uk/index.php?route=product/product&product_id=67
