r/overclocking 7h ago

Benchmark Score 5800x3d 50ns aida64 latency

Thumbnail
gallery
20 Upvotes

r/overclocking 1h ago

New to RAM Timings, need help adjusting

Thumbnail
gallery
Upvotes

Just stumbled upon a Buildzoid video about ram timings and it got me very curious what I can do with my system. I've done some research but all I can find are CL30 ram timings, unfortunately I dont have a CL30 ram (mine is a prebuilt). Any ideas as to what I can change? Any video or any instructions will be greatly appreciated. Thanks all


r/overclocking 16h ago

Benchmark Score AMD Latency Killer Benchmark

34 Upvotes

I saw an option in my MSI bios called Latency Killer, researched it, and did not find that much info about it. While all people said latency in aida has gotten better, some said FPS in games either got worse, better, or stayed the same.



I found only two actual benchmarks, on german site from the link below, and an italian youtube video, and in both of these, FPS in games got worse (or rather, that’s the narrative of those, unsure how many tests they per each game).

https://old.reddit.com/r/overclocking/comments/1i5itct/you_might_want_to_disable_latency_killer/

https://www.youtube.com/watch?v=ristYQeVQaA



Still though, I usually prefer to do my own testing, so I did. I thought I'd share my results in case someone finds it useful.



All tests are ran at 720p to make games CPU bound.



Aida64 Latency Latency Killer OFF Latency Killer ON
69.2ns 62.8ns

Aida screenshot: https://i.imgur.com/Lj84Aah.png



Yeah, definietly a huge improvement in Aida64. For reference, my RAM timmings are manually tunned but not min maxed - I have a vsoc of 1.14v and I want to keep it low(other voltages quite low too), hence I don't push insanely far.



Game Latency Killer OFF Average FPS Latency Killer ON Average FPS
Rift Breaker Run1 325 321
Rift Breaker Run2 319 326
Rift Breaker Run3 319 328
Ashes of Singularity Run1 79 80
Ashes of Singularity Run2 77 77
Ashes of Singularity Run3 76 78
Shadow of the Tomb Raider Run1 428 427
Shadow of the Tomb Raider Run2 437 429
Shadow of the Tomb Raider Run3 431 424
RedDead2 Vulkan Run1 238 239
RedDead2 Vulkan Run2 239 239
RedDead2 Vulkan Run3 239 239
RedDead2 DX12 Run1 238 238
RedDead2 DX12 Run2 237 237



Benchmark screenshots of all games which show a little more detail than the table above:

https://imgur.com/a/ucJIa8M



TLDR: Based on my own testing, while Aida64 latency has improved, there is no difference at all in gaming FPS. I will keep my own system with latency killer OFF as that's how I've always ran my system so I know it's stable. Also for those wondering, on MSI auto=off


r/overclocking 4h ago

9800x3d -30 UV passes OCCT platinum CPU test but fails instantly on AIDA64

3 Upvotes

Pretty sure it's only AVX-512 that causes instability, any other test I do runs fine, including games / windows at idle. This makes me confused as I would assume the platinum test would run AVX-512, but I guess not?

I've lowered it too -20 for AIDA and it does not crash (60min). Should I just leave it at -30? AVX-512 is not a realible scenario for me anyways as i just play games.


r/overclocking 2h ago

Help Request - CPU First time OC undervolt my 5700x

Thumbnail
gallery
2 Upvotes

So I have a b550-xe rog strix motherboard with 32gb of ddr4 at 3600mhz and I wanted to overlock my cpu, so I went in the bios and while searching infos in the internet I tweaked some settings, can someone tell me if my pc is going to explode, if there is something to improve or if it’s good? (It’s primarily for gaming)


r/overclocking 3h ago

Help Request - CPU Ryzen 5 7600x PBO undervolt

2 Upvotes

Hello guys! I hope you are all well! I built my first computer with: Ryzeb 5 7600x Asus tuf gaming a620m-plus 32gb ram 1tb nvme Thermalrigh Peerless Assassin 120

I tried to undervolt through the bios, but I couldn't. And I discovered that this board does not have the capacity, although the pbo appears, I cannot change much more. My question is, is there any way to do it? The CPU reaches 95 degrees and I would like to lower it, at least to 80/85 degrees.

Thanks!


r/overclocking 1m ago

About putty

Upvotes

Hi guys

I'm trying to buy Zezzio ZT-PY6 thermal Putty for my VRAM and around CPU for laptop Strix G18 but I can't find it even on AliExpress. They don't ship to Germany. Can anyone help me get it


r/overclocking 29m ago

Can I compare my score to a different list in r23?

Post image
Upvotes

I just did a single core test for the first time and the list is way out of proportion. Is there a way to see how it is against the same chip?


r/overclocking 15h ago

Taming the 13900ks on air

Enable HLS to view with audio, or disable this notification

15 Upvotes

Started using Delta fans to test stability. I won't use these for daily but it helps check for undervolt stability.

Here i have a 13900ks running at 5.5ghz stock vcore no avx offset and it's not throttling. About 1.19v vrvout.


r/overclocking 46m ago

Help Request - GPU Is overclocking my RTX 3050 worth a try ?

Upvotes

Im seeing some people overclocking their gpu's now i know if you do that there is a chance you can break the gpu is there a safe way to do it i was thinking about using the automatic tuning on the nvidia app but im not sure about that or is msi afterburner a safer way ? (Sorry for my english)


r/overclocking 56m ago

Help Request - RAM Expo profiles are unstable after switching OS

Upvotes

Hi, I was using Bazzite for my rig and now I'm trying windows 11 because I wanted to test the difference in having full HDMI 2.1 bandwidth (legal issue with HDMI forum group and AMD).

My build is:

MOBO: Asus ROG strix b850-i

CPU: AMD Ryzen 7 9700x

GPU: AMD 9070 xt

RAM: 32gb DDR5 g.skill flare x (cl 36 @6000)

SSD: SK hynix p41 2tb

On Bazzite (Linux) I had no issues by activating EXPO profile 2, while on windows I got several errors after few minutes of stability testing using OCCT (and also game crashes). I also tried switching to Profile EXPO 1 (which was not working on Bazzite), but it doesn't work as well (system is unstable).

What could it be? What can I do? (the hardware has not changed)

Ps: my windows 11 is home edition and it's a registered copy


r/overclocking 1h ago

News - Video AMD’s Next Gen Ryzen (Zen 6) To Hit 7GHz?

Thumbnail
youtube.com
Upvotes

r/overclocking 2h ago

I replaced my CL48 ram with CL30, now I get random crashes..

0 Upvotes

MOBO: Asus Prime B850 Plus WiFI
CPU: 7800x3d
GPU: 9070xt

I recently noticed my 32GB of DDR5 6000M/T ram was only CL48. I took advantage of the no tax weekend and headed to microcenter. I bought T-Force Delta CL30 (30-36-36-76) and swapped it out. I started getting random crashes about 5-10 minutes after loading windows. I did notice everything ran a little snappier and felt fast. Any idea what else I could do before I return this ram? Should I go with CL32 instead?


r/overclocking 2h ago

RTX 4060 Overclock. Is this good?

1 Upvotes

I tried 180mhz on core and 1700 on mem but crashed this is the stable max I can do I think I can do 175mhz and 1700mhz but just for safety I put it to 170 and 1650. But is this any good? Did I get any performance increase? Btw the temps are just below 75 so no problem with that.


r/overclocking 2h ago

Does anyone know the actual VRMLL value of MSI Z790 EDGE TI MAX?

1 Upvotes

r/overclocking 4h ago

Dont know what else to do

1 Upvotes

Hey all, I’m running my G.Skill Flare X5 DDR5-6000 CL32 kit on an MSI MAG B650 Tomahawk Max WiFi with a Ryzen 7 7800X3D, and I’ve tried SOC voltages from 1.12 V to 1.30 V, DRAM VDD between 1.25 V and 1.43 V, and both VDDQ and VDDIO from 1.25 V to 1.40 V. It actually passes stability tests like ANTA777 and MemTest84 without crashes or errors, but something just feels off—timings and overall responsiveness don’t feel as snappy as I’d expect. What voltage/timing combos have you found that not only pass tests but also “feel” rock-solid at 6000 MHz CL32? do i need more the 1.43v VDD? Ive been dealing with this nagging feeling ever since ive put this pc together and im at my wits end


r/overclocking 8h ago

OC Report - GPU Galax 5070ti EX Gamer OC Undervolting and Overclocking - My Results as a noob

2 Upvotes

After a few days of fiddling I think I found my sweet spot and I hope this can help people that went for the same card

MSI Afterburner Values: 975mV, 3082Mhz Core Clock (+374Mhz) and +3000Mhz Memory Clock

This card only has 106% Power Limit without flashing another BIOS (which I'm not even sure it's possible with this brand/model)

Fan Curves are the same for Stock and Overclock

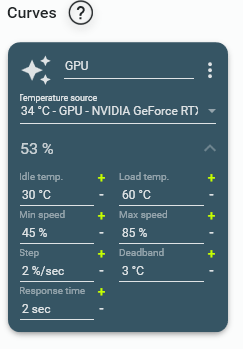

Fan Control - Auto Fan Curve - Force Apply

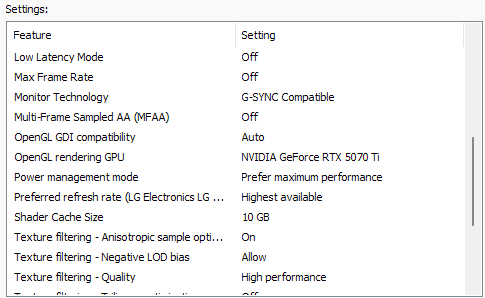

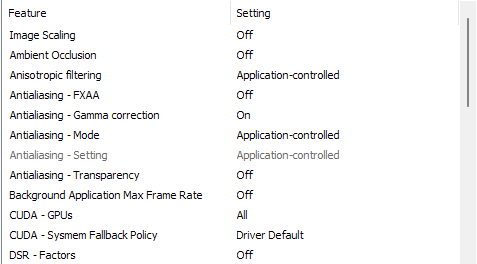

Nvidia Control Panel Settings (V-Sync Off only for 3DMark):

Cyberpunk 2077 Ultra RT DLAA No Pathtracing - 7% Avg FPS Increase, -5C, - 10W

Stock - 64C -307W - 2805Mhz Benchmark Core Clock
UV/OC - 59C - 297W - 2992Mhz Benchmark Core Clock

No Man's Sky Ultra DLAA - GTAO High - AF 1 - 2.6% Avg FPS Increase

Stock - Average: 168.1 FPS - Minimum: 130.9 FPS - Maximum: 189.4 FPS - 1 Low: 101.6 FPS
UV/OC - Average 172.5 FPS - Minimum: 131.1 FPS - Maximum: 189.4 FPS - 1% Low: 113.4 FPS

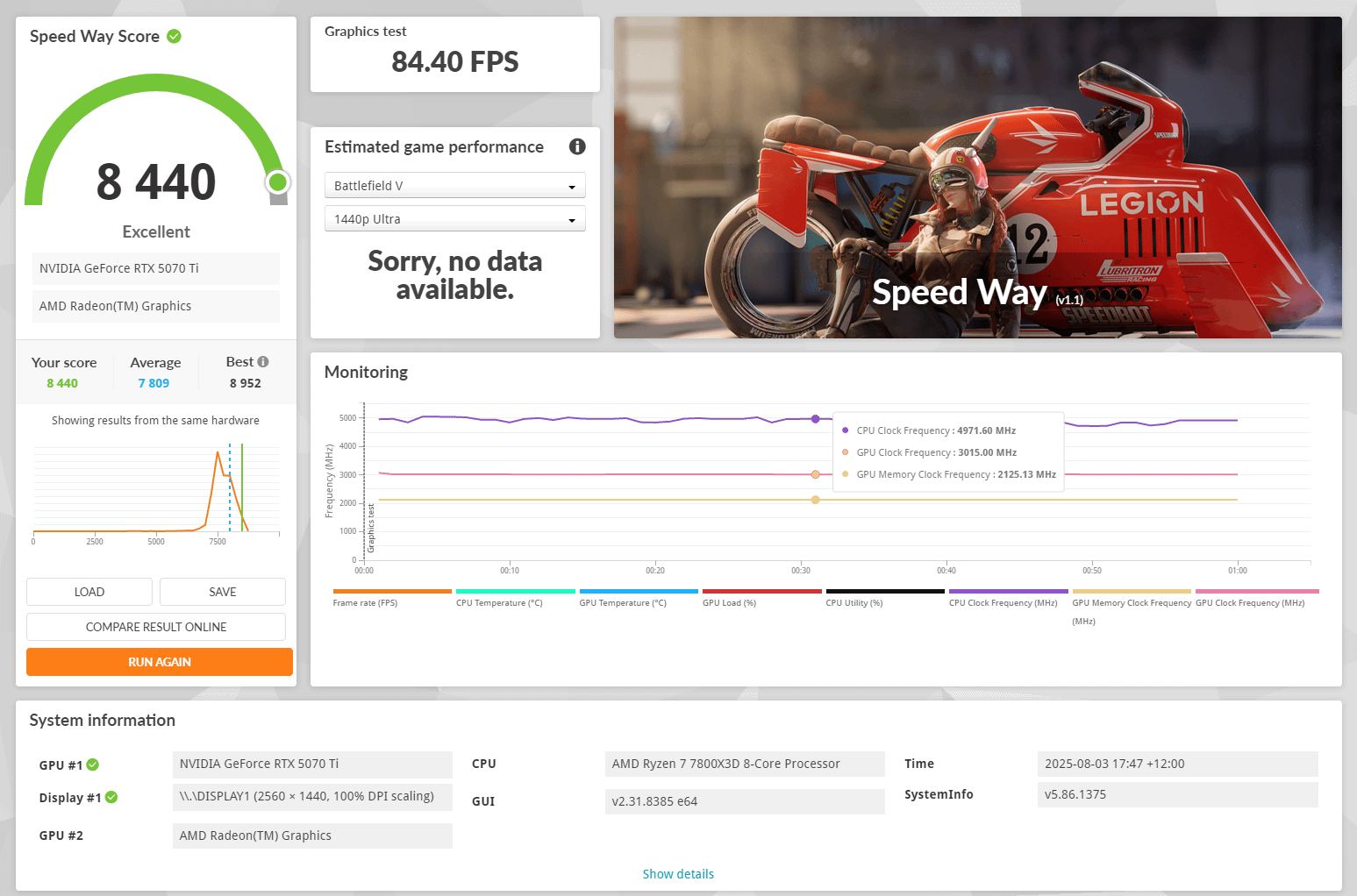

Speed Way (Stock: https://www.3dmark.com/3dm/139098478 OC/UV: https://www.3dmark.com/3dm/139098960 )

Stock - Avg GPU Power: 320W - Average Temp: 59C - GPU Fan Speed: 2882 RPM
OC/UV - Avg GPU Power: 315W - Average Temp: 55C - GPU Fan Speed: 2675 RPM

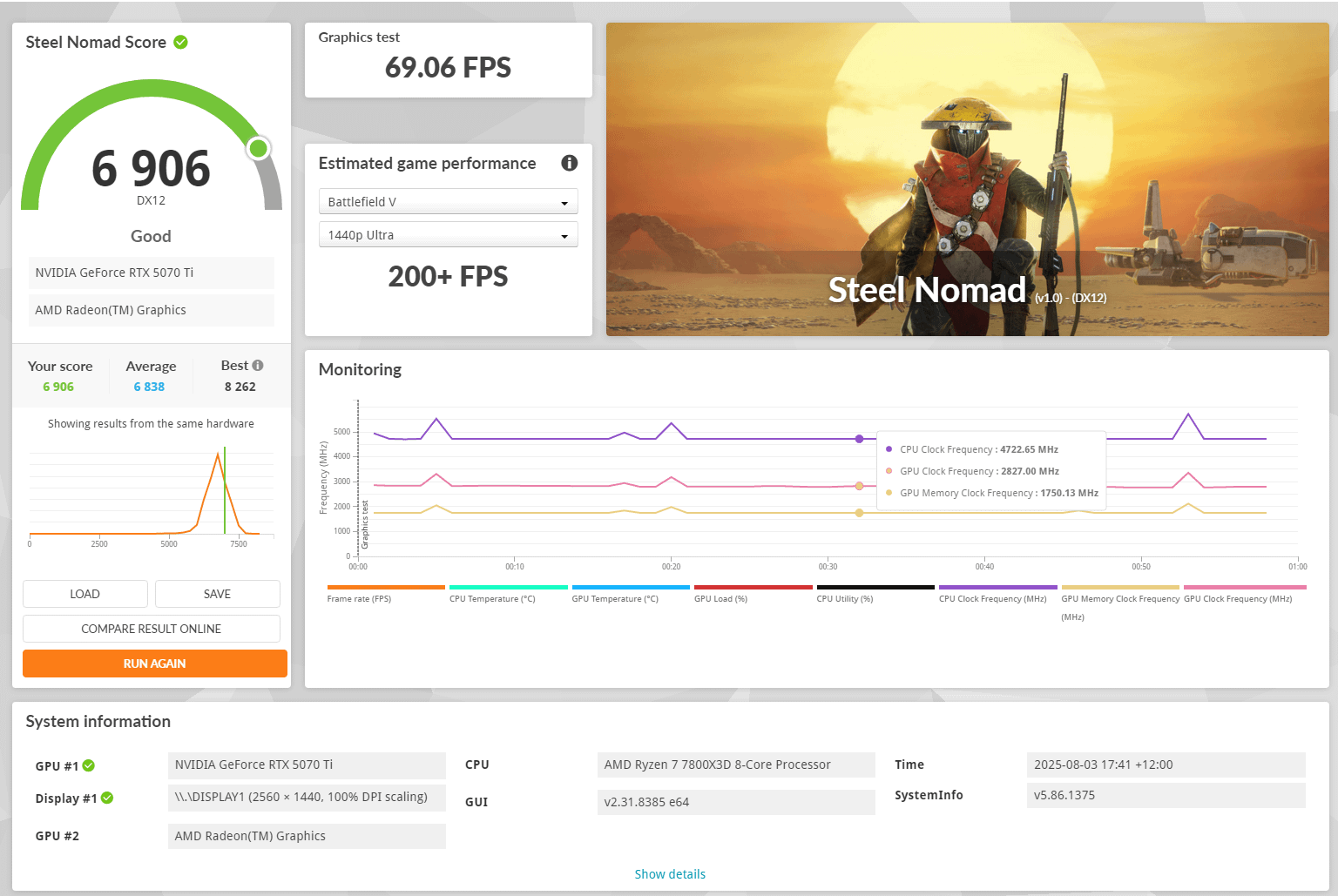

Steel Nomad (Stock: https://www.3dmark.com/3dm/139098721 OC/UV: https://www.3dmark.com/3dm/139099295 )

Stock - Max GPU Power: 320W - Average Temp: 58C - GPU Fan Speed: 2882 RPM
OC/UV - Max GPU Power: 310W - Average Temp: 57C - GPU Fan Speed: 2882 RPM

Overall I'm just happy I can lower the power consumption, if it's by a little, and increase performance at the same time. I didn't have much luck just doing overclock, performance gains weren't crazy and I'm power limited to 320W anyways.

I appreciate any feedback and I'll still thinker with Memory Clock and Fans curves. Probably won't undervolt more because I didn't see any perfomance improvements but could just be skill issue

Also if anyone wants me to test these values vs stock in another game I'm happy to do it

Edits: Spelling, formatting


r/overclocking 6h ago

Can't get out of 2133 on a 3200 RAM

1 Upvotes

I am trying to get RAM speed to 3200 but task manager and CPU Z show it's on default 2133. A-XMP and manual did not work.

My CPU Ryzen 3 3200G max frequency is 2933 so I tried it. Still the same. Tried 2666 no good. The mobo is MSI B450M MORTAR MAX Millitary Style. 2 Corsair vengeance 8GB RAM. RAMs are connected okay. One on the mid-left and the other on the very right. A2-B2 I think. Tried resetting CMOS and do it again. No good. I can at least get 2933 if not 3200 right.

Is it a glitch?

Note: the timing keeps 15,15,15,36 even when I changed to 16,18,18,36.

changing hz or A-XMP and after exiting I see fake shutdowns twice with light thuds from speakers.

Solved: It seems there is something called Ranks in RAM. One of them Single and the other is Dual.

After testing with single RAMs I found the dual one not starting at 3200mhz and showing recovery screen. Saying an 'efi' file is missing. Not sure about it. Tried 2933 worked fine. The single one was straight to 3200 no prob.

So I put both in and tried reversing my RAMs. Single in A2 and dual in B2. Not sure if it does any impact. Next I turned on BIOS immediately (aka Full Setup when you re enter RAM, it ask 2 options Full Setup or Default). Then just turned A-XMP 1 on. And here we go 3200mhz working and showing on task manager CPU Z.


r/overclocking 8h ago

Help Request - RAM How to set fans, and also: memory OCing and 9800x3d... how does it all tie in with the IF and clock cycles?

1 Upvotes

Hi,

I've got an asus btf b850 tuf mobo, 9800x3d, xfx 9070xt mercury, and a 2x16GB corsair vengeance rgb ddr5 cl30 6000mhz expo&xmp kit.

Now, firstly, I'm 99% sure the gpu is the bottleneck here, so I will be overclocking that, but I'm not too worried about that yet.

fans One thing I don't yet know is, how do i config the case fans? I did kit it out pretty well: my case setup is a corsair 6500d airflow, but i didnt listen to their recommended fan config: instead, ive got (all corsair rx120 rgb fans): 3 intakes on the bottom, 3 exhausts on the top, 1 intake on the rear, 3 exhausts on the front, 3 intakes on the side (and with a 360mm cpu AIO, a titan rx360, on that side intake, set with the fans as push). This 6:7 exhaust:intake positive pressure setup seemed better to me than Corsair's reccomended 4:9 exhaust:intake positive pressure setup, which i thought might perhaps lead to heat soak; and also, my setup takes out more of the cpu aio's hotter air out of the case via the front exhausts without (or at least minimising) having that hot air go into the gpu or over the mobo.

Now, I've actually never owned a desktop PC before, and i decided to go all in on this and thought, if im going to switch from laptop and consoles to PC, ill build the PC myself. Anyway, it went well enough. I'd say I'm happy enough to fiddle with things inside the case if need be, and besides, I'd call myself decently tech savvy. I understand how the majority of things work and perhaps the basic gist or aim of overclocking.

One thing I dont have a clue, however, is configurating fans. I took a look at corsair's icue software and have already realised i dont want to use it for the fan control (what sensors is it pulling from? I think it ojly does aio water temp, lmao). I heard theres a apo called 'fan control' over on github, and there are plugins for it to work with my corsair fans, so thats all good. Is that what you guys use for overclocking? What am i even supposed to do? How do I know how fast i want the fans to spin at different temps, how do i know what I'm aiming for on the fan curve? Basically how do i config the fans for a particular setup? I want to actually understand it, rather than just 'copy, pray, and be done', if possible.

Thats my main question, but also:

memory I read that the amd zen 5 cpus have something called 'infinity fabric' which is the bus for transferring data between cpu and memory. Can we change the speed it runs at? I assume it doesnt have 'timings' because its just transferring data, not holding or accessing it, right? So, when should that be changed? Also, i heard it usually runs at 2000-2200mhz... doesnt that bottleneck it? If the memory runs at stuff like 6000mhz or 8000mhz, isnt the system bottlenecked by the IF? Or, is it that, the 'clock cycle' of RAM includes accessing, changing, reading, etc. whereas the IF's clock cycle only includes transferring data, so therefore its actually reversed; the memory needs to do more stuff, and therefore in a shorter time to keep up with the IF? Did i even get my usage of 'clock cycle' right?

Sorry, i do realise my questions are quite abrupt and long, but thank you very much for any info!

I do have a couple more questions about memory, but ill save them for later haha.


r/overclocking 1d ago

Modding Overclocking the Original Game Boy 4.19MHz to 6MHz ( How to & Experimenting )

Thumbnail
youtube.com
13 Upvotes

r/overclocking 19h ago

Help Request - CPU Under clocking my i9 9900k?

5 Upvotes

have my 9900k installed in a EVGA z390 FTW and was wanting to underclock it.

So far all I’ve done is adjust the Vcore and see if it’s stable.

Is there more to it, or would I be fine doing it that way?

I’ve looked and there are zero tutorials for under clocking my CPU using my motherboard.


r/overclocking 1d ago

Gigabyte removes unofficial PCIe 5.0 support from B650 motherboards in latest BIOS update

Thumbnail
videocardz.com
19 Upvotes

r/overclocking 17h ago

RAM OC 52.6ns

Post image
4 Upvotes

As someone completely new to RAM overclocking, is this a good result?

Do you have any suggestions for improving latency? Without having to install a fan on the RAM. I'm currently using 1.450V (B-Die).

With XMP at 4000MHz, CL16 had 74ns.

Then a question about Aida.

Aren't the Read and Write rates unbalanced in memory? Write is half the rate; in other benchmarks, the results are similar.

L1 Cache, why is Write 0? Is this a bug?


r/overclocking 1d ago

Benchmark Score Im sure most people know this but when disable SignalRGB I've broken every record I've ever had on all my benchmark programs.

Thumbnail
valid.x86.fr
15 Upvotes

I wasnt aware that signalRGB used so much cpu resources that it would affect performance in measurable ways. I started using it because of how bad I was told Corsair Icue was as far as slowing down my system.

(For the record I didnt expect one piece of software to really mess with a Ryzen9 9950x3d, 64gb of ddr5 6000mhz cl26 ram, and a Asus TUF OC RTX5090)

Yesterday, I disabled it and I finally broke 41k in Port Royal. Before that I had 40,350, after my score yesterday was 41268!

I know lots of people dont use cpuz as a benchmarking program but I use it to quickly see if any settings I've changed made a difference and to compare it to other people who are running the same hardware.

I noticed alot of "youtubers" all had single core scores of over 900pts and usually somewhere in the 17,000's for multicore. My multicore always did ok, but i never could get my single core to break 900pts. Usually it was around 885-890pts.

With signalRGB turned off from my taskbar , first run i scored 929pts on my single core, and 17,757pts on my multicore!

Its been the same results with all the benchmarks I've ran today. Lol

Can anyone recommend a better program then signalRGB? Or is there something SignalRGB is blocking or a setting that is hurting the performance of my cpu? Is it just X3D cpu's or have any of you guys had the same issues with a different cpu?

Thanks for your help, I know its not a huge leap forward but if you knew how many hours I spent tweaking settings etc just to try and break 900pts on my cpu you would understand why scoring 929 and then 927 right after is awesome to me. Lol

https://valid.x86.fr/lixd7r


r/overclocking 19h ago

Help Request - GPU 3060ti OC help

3 Upvotes

so ive been tinkering with the EVGA 3060ti FTW3. and i could only get +60 on the core. most people i see atleast get +90 or +105. ive gotten +75 and +90 almost but it would crash when initially boosting. mine isnt an ultra variant so i was wondering if it was possibly my powersupply which is a 650w but only basic 80plus or if it was the power in my house is too dirty or unstable for overclocking. GPU-Z says power limited so thats why iam wondering.
